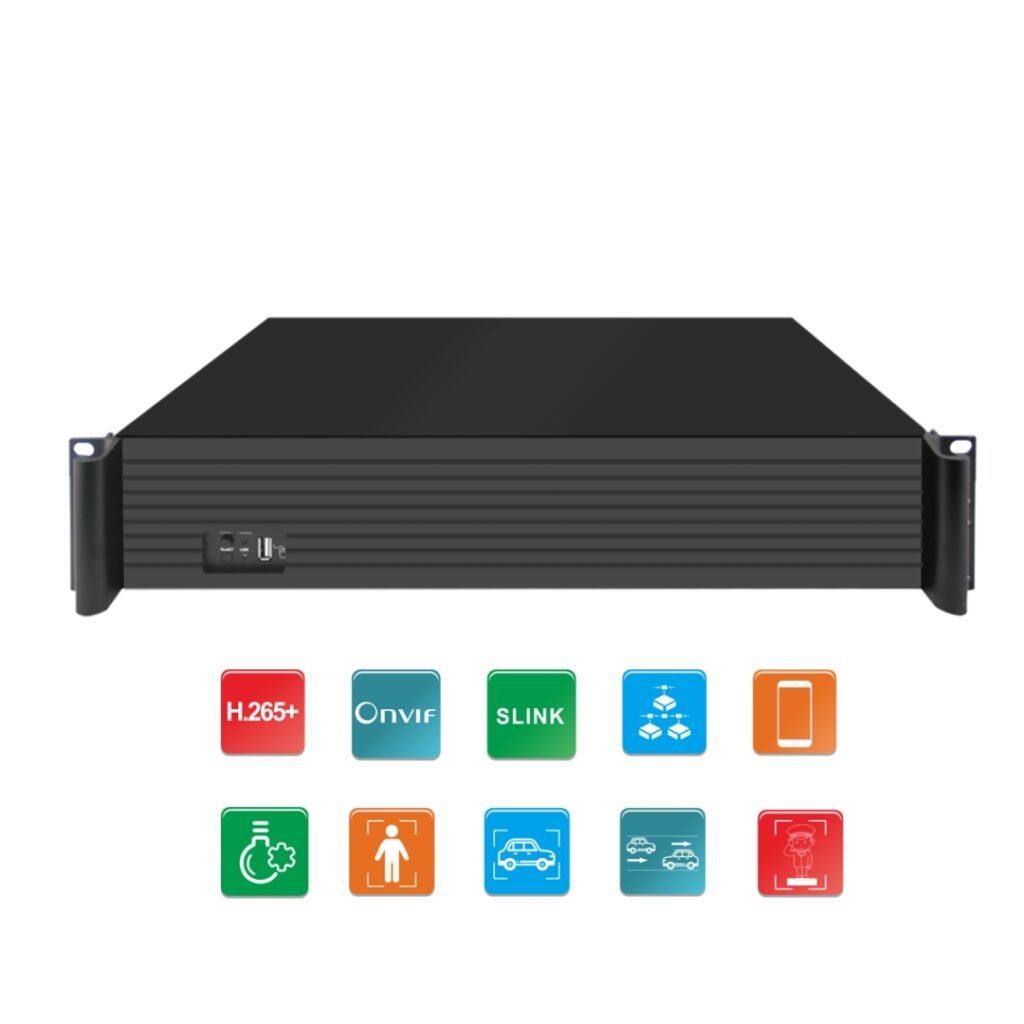

EV-IVR-128CH-4K-4HDMI | 128 Channel 8K Output Intelligent Video Recorder
Eurovision EV-IVR-128CH-4K-4HDMI is a powerful 128 Channel Intelligent Video Recorder featuring 8K display output, 4 HDMI ports, AI smart analytics, 144TB storage support, and enterprise-grade 24/7 surveillance performance.
- 128 Channel IP Camera Support
- 8K Ultra HD Display Output
- 4 HDMI & VGA Video Output
- H.265+/H.265 Video Compression
- Up to 144TB Storage Capacity
- 800Mbps Incoming Bandwidth
- AI Human & Vehicle Detection
- Remote Viewing via Mobile App
- RAID, NAS & IPSAN Support
- 24/7 Enterprise Surveillance Performance
Specification：
| Functions | ||||||||||
| Channel connection protocol | RTSP、SLINK（private protocol）、ONVIF、I9 | |||||||||
| Mobile APP | Support Android and IOS | |||||||||
| Display mode
1) Mode 1: 1 pcs HDMI output (12MP/D1+128 CH Preview+16CH playback) 2) Mode 2: 2 pcs HDMI output (12MP/D1+2 screens 64+64 CH Preview+16CH playback) 3) Mode 3: 4 pcs HDMI output (8MP/D1+4 screens 36+36+36+36 CH Preview+16CH playback) |
||||||||||
| Smart analysis | area intrusion,loitering, line-crossing detection, illegal vehicle detection, absence detection, retrograde detection | |||||||||
| Video | ||||||||||
| Single screen mode | ||||||||||
| Split | 1 | 2 | 4 | 6 | 8 | 9 | 10 | |||
| Decode | 8K | 2*12M | 4*12M | 12M +5*1080P | 12M +7*1080P | 9*4K | 2*4K + 8*3MP | |||
| 16 | 25 | 36 | 49 | 64 | 128 | |||||
| 16*5MP | 25*3MP | 36*D1 | 49*D1 | 64*D1 | 128*D1 | |||||
| Dual screen mode | ||||||||||
| Split | 1 | 2 | 4 | 6 | 8 | 9 | 10 | |||
| Decode | 8K | 2*12M | 4*4K | 12M +5*1080P | 12M +7*1080P | 9*3MP | 2*4K + 8*1080P | |||
| 16 | 25 | 36 | 49 | 64 | 81 | 100 | ||||
| 16*1080P | 25*D1 | 36*D1 | 49*D1 | 64*D1 | 881*D1 | 100*D1 | ||||
| Four screens mode | ||||||||||
| Split | 1 | 2 | 4 | 6 | 8 | 9 | 10 | |||
| Decode | 12M | 2*4K | 4*5MP | 4K +5*1080P | 5MP+7*1080P | 9*1080P | 10*1080P | |||
| 16 | 25 | 36 | 49 | |||||||
| 16*D1 | 25*D1 | 36*D1 | 49*D1 | |||||||
| Bandwidth | 800Mbps | |||||||||
| Video compression | H265+/H.265 /H.264 | |||||||||
| Recording resolution | 12MP/4K/1080P/720P/D1 | |||||||||
| Audio compression | G.711A/U | |||||||||
| Recording and playback | ||||||||||
| Recording method | manual, schedule, motion detection, timing, alarm, stop | |||||||||
| Playback | 1 CH 12MP, 4CH 4K, 16CH D1 | |||||||||
| Playback mode | Regular playback, event playback | |||||||||
| Storage and backup | ||||||||||
| Storage Port | 9 pcs SATA | |||||||||
| HDD capacity | Max 16TB | |||||||||
| Storage path | Local hard disk,network HDD (IPSAN、NAS) | |||||||||
| Backup method | USB portable HDD, Memory flash | |||||||||
| External Port | ||||||||||
| Audio Input | 1 pcs RCA Port | |||||||||
| Audio Output | 1 pcs RCA Port | |||||||||
| Series Port | 1 pcs RS485 port | |||||||||
| USB port | 2 pcs USB 2.0 | |||||||||
| Network port | 2 pcs RJ 45 1000M Port | |||||||||
| Alarm input | 16 CH | |||||||||
| Alarm output | 8 CH | |||||||||
| HDMI | 4 pcs | |||||||||
| General | ||||||||||
| Power | AC100-240V 250W | |||||||||
| Working temperature & humidity | -10°C ~ 55°C/10﹪-90﹪ | |||||||||
| Size(mm) | 440mm×430mm×90mm | |||||||||
- 128 Channel IP Camera Support
- 8K Ultra HD Display Output
- 4 HDMI & VGA Video Output
- H.265+/H.265 Video Compression
- Up to 144TB Storage Capacity
- 800Mbps Incoming Bandwidth
- AI Human & Vehicle Detection
- Remote Viewing via Mobile App
- RAID, NAS & IPSAN Support
- 24/7 Enterprise Surveillance Performance
Description
Eurovision EV-IVR-128CH-4K-4HDMI Intelligent Video Recorder is an enterprise-grade recording solution designed for large-scale CCTV surveillance systems. Supporting up to 128 IP camera channels, it delivers reliable, high-performance recording for airports, smart cities, data centers, industrial facilities, and commercial security projects.
Equipped with H.265+/H.265/H.264 video compression, the recorder minimizes storage consumption and network bandwidth while maintaining exceptional image quality. With 800Mbps incoming bandwidth, it ensures smooth live viewing and stable recording even in demanding surveillance environments.
The recorder features 8K single-screen output with flexible 4 HDMI display support, making it ideal for control rooms and multi-monitor surveillance stations. It also supports 9 SATA hard drives with up to 16TB per drive, providing a maximum storage capacity of 144TB for long-term video recording.
Built-in AI smart analytics including Human Detection, Vehicle Detection, Line Crossing, Area Intrusion, Loitering, and Retrograde Detection enhance security accuracy while reducing false alarms. With remote access via the mobile app, users can monitor live video, playback recordings, and manage the system anytime, anywhere.
Designed for 24/7 continuous operation, the EV-IVR-128CH-4K-4HDMI is the perfect solution for enterprise and mission-critical surveillance applications.
