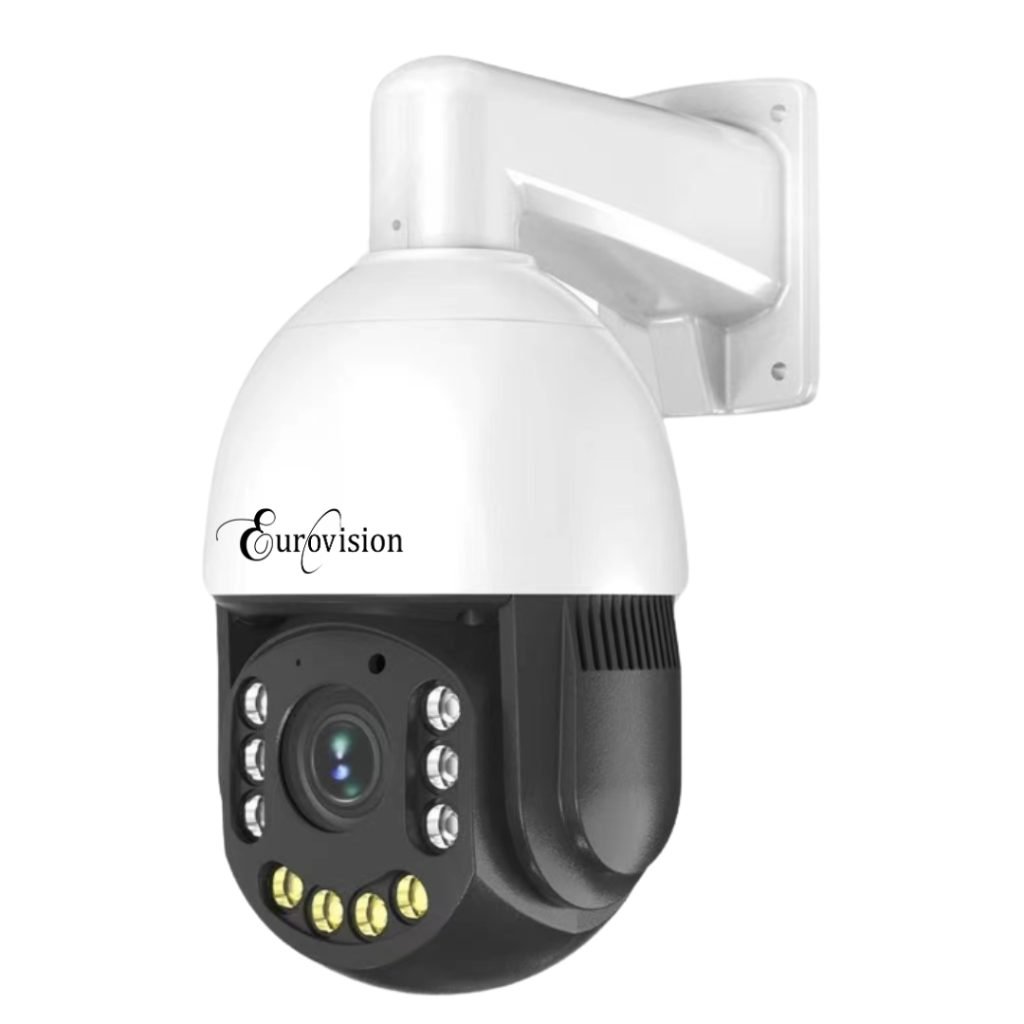

EV-IPC-PTZ30V-DL | 5MP Full-Color 30X PTZ Camera
The EV-IPC-PTZ30V-DL is a 5MP full-color PTZ IP camera featuring 30X optical zoom, 150m IR night vision, built-in audio, and IP67 rating for panoramic surveillance
- low-light performance with powered-by-DarkFighter technology
- support Mic and Speaker, DC12V 4A power supply
- T31X+GC4653 5MP 6 inch PTZ IPC, 30X
- lens:4.5mm-135mm, dual light
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP66); -I: Water and dust resistant (IP67)
- 3D DNR technology delivers clean and sharp images
- IR Up to 150 Meters
- Supports iOS/Android
- Low illumination camera
| Category | Specification |
|---|---|
| Image Sensor | 1/2.9” CMOS |
| Max Resolution | Min: 1920 × 1080, Max: 2560 × 1440 |
| Effective Pixels | 5.0MP |
| Compression Standard | H.265 / H.264 |
| Maximum Frame Rate | 30fps |
| SNR(dB) | 38dB |
| Bit Rate | 128Kbps ～ 8Mbps |
| Illumination | 0Lux (IR ON) |
| Wide Dynamic Range | 120dB |
Lens
| Category | Specification |
|---|---|
| Lens | 4.5mm – 135mm |
| Viewing Angle | Depends on Zoom |
| IR Distance | Up to 150 Meters |
Illuminator
| Category | Specification |
|---|---|
| Wavelength | 850nm |
| Smart Supplement Light | Yes |
| Supplement Light | IR |
Video
| Category | Specification |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720) / 60Hz: 30fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) / 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) / 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) |
| Video Compression | Main Stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264 |
| Video Bit Rate | 32Kbps to 8Mbps |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main Stream Supports |
| H.265+ | Main Stream Supports |
| Bit Rate Control | CBR / VBR |
| Scalable Video Coding (SVC) | Yes |
| Region Of Interest (ROI) | 1 Fixed Region for Each Stream |
Function
| Category | Specification |
|---|---|
| Motion Detection | Support |
| Email Alert | Support |
| Day & Night | Support |
| Recording | Support (NVR, Windows PC, Smartphone) |
| DHCP | Support |
| FTP | Not Supported |
| Pan/Tilt | Not Supported |
| SD-Card | Not Supported |
| Privacy Mask | Support up to 4 Areas |
| Exposure Control | Support |
| Image Adjustment | Support |
| Auto White Balance | Support |
| Image Rotation | Support (Mirror / Flip) |
Network
| Category | Specification |
|---|---|
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Stream | 2× Streams |
| Wi-Fi | Not Supported |
| LAN | Support |
| User | Up to 3 Users |
| Browser | IE8+, Chrome18+ ~ 42- |
| Smart Phone | iOS / Android |
General
| Category | Specification |
|---|---|
| Dimensions (W×H×D) | Φ70 × 165.1mm |
| Weight | 4kg |
| Material | Metal |
| Working Temperature | -20°C ～ 60°C |
| Humidity | RH 10% ～ 90% |
| Power Supply | DC12V/1A, PoE (Optional) |
| Power Consumption | Day ≤ 2W, Night ≤ 6W |
| Waterproof | IP67 |
- low-light performance with powered-by-DarkFighter technology
- support Mic and Speaker, DC12V 4A power supply
- T31X+GC4653 5MP 6 inch PTZ IPC, 30X
- lens:4.5mm-135mm, dual light
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP66); -I: Water and dust resistant (IP67)
- 3D DNR technology delivers clean and sharp images
- IR Up to 150 Meters
- Supports iOS/Android
- Low illumination camera
Description
EV-IPC-PTZ30V-DL | 5MP Full-Color 30X PTZ Camera with 150m IR & Audio
Product Overview
The EV-IPC-PTZ30V-DL is a professional-grade 5MP PTZ camera designed for comprehensive panoramic surveillance with exceptional zoom capabilities. The EV-IPC-PTZ30V-DL delivers superior imaging with its 5MP resolution and powerful 30X optical zoom (4.5mm-135mm lens) that allows for detailed monitoring of distant subjects. Featuring advanced DarkFighter technology for outstanding low-light performance, this camera provides full-color imaging and infrared illumination extending up to 150 meters. With built-in microphone and speaker for two-way audio, 120dB WDR for challenging lighting conditions, and IP67 weatherproof rating, the EV-IPC-PTZ30V-DL is ideal for large area monitoring, perimeter security, and applications requiring both wide-angle coverage and detailed zoom capabilities.
